Deployment and configuration for Geneva

Geneva is a client-side library that simplifies feature engineering at scale. To handle multimodal distributed processing, Geneva uses Ray, a distributed processing system. Geneva can use Ray deployed locally on your laptop, against an existing Ray cluster, or provision Ray on demand on a kubernetes cluster using the kuberay operator.

This page will help cloud admins understand and setup Geneva's requirements.

Geneva on Kubernetes deployments

Prerequisites

  • Kubernetes cluster with kuberay 1.1+ operator installed.
  • Ray 2.43+

See below for installation instructions for: * Amazon Web Services (AWS) Elastic Kubernetes Service (EKS) * Google Cloud Platform (GCP) Google Kubernetes Engine (GKE)

Basic Kubernetes setup

In the following sections we'll use these variables

NAMESPACE=geneva  # replace with your actual namespace if different
KSA_NAME=geneva-ray-runner # replace with an identity name

Kubernetes Service Account (KSA)

Inside your Kubernetes cluster, you need a kubernetes service account which your provide the credentials your k8s pods (Ray) run with. Here's how to create your KSA.

Create a Kubernetes service account (KSA)

kubectl create namespace $NAMESPACE   # skip if it already exists

kubectl create serviceaccount $KSA_NAME \
  --namespace $NAMESPACE

You can verify using

kubectl get serviceaccounts -n $NAMESPACE $KSA_NAME

The Kubernetes service account (KSA) needs RBAC permissions inside the k8s cluster to provision Ray clusters via CRDs.

Create a k8s role that can access the Ray CRD operations.

kubectl apply -f - <<EOF
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ${KSA_NAME}-role
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "list", "watch"]
- apiGroups: ["ray.io"]
  resources: ["rayclusters"]
  verbs: ["get", "patch", "delete"]
EOF

Bind the clusterRole to your KSA

kubectl apply -f - <<EOF
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ${KSA_NAME}-binding
subjects:
- kind: ServiceAccount
  name: ${KSA_NAME}
  namespace: ${NAMESPACE}
roleRef:
  kind: ClusterRole
  name: ${KSA_NAME}-role
  apiGroup: rbac.authorization.k8s.io
EOF
Now confirm your permissions

kubectl auth can-i get pods --as=system:serviceaccount:${NAMESPACE}:${KSA_NAME}

Geneva on GKE

Google Kubernetes Engine (GKE) is a GCP service that deploys Kubernetes and can manage on demand provisioning of cluster nodes. Ray can be deployed on GKE clusters using a the kuberay k8s operator.

GKE provides the option for an out-of-the-box kuberay operator deployment. The version of kuberay is tied to the version of GKE you have deployed. Currently these versions are supported:

  • GKE 1.30 / kuberay 1.1.
  • GKE 1.31 / kuberay 1.2.
  • GKE 1.32 / kuberay 1.2.
  • GKE 1.33 / kuberay 1.3.

Alternatively, you can also deploy your own kuberay operator to get the latest kuberay 1.3 version.

The following sections describe in more details other required configuration settings required for Geneva to perform distributed execution.

GKE node pools

GKE allows you to specify templates for virtual machines in "node pools". These allow you to manage and configure resources such as the number of CPUs, number of GPUs, amount of memory, and if instances are spot or regular virtual machines.

You can define your node pools however you want but Geneva uses three specific kubernetes labels to when deploying Ray pods on GKE: ray-head, ray-worker-cpu, ray-worker-gpu

Head nodes are where the Ray dashboard and scheduler run. They should be non-spot instances and should not have processing workloads scheduled on them. Geneva looks for nodes with the geneva.lancedb.com/ray-head k8s label for this role.

CPU Worker nodes are where distributed processing that does not require GPU should be scheduled. Geneva looks for nodes with the geneva.lancedb.com/ray-worker-cpu k8s label when these nodes are requested.

GPU Worker node are where distributed processing tha trequire GPU should be scheduled. Geneval looks for nodes with the geneva.lancedb.com/ray-worker-gpu k8s label when these nodes are requested.

GKE + k8s Permissions

Geneva needs the ability to deploy a kuberay cluster and submit jobs to Ray. The workers in the Ray cluster need the ability to read and write to the Google Cloud Storage (GCS) buckets. This requires setting up the proper k8s permissions and GCP IAM grants. There are three main areas to setup and verify:

  • Kubernetes Service Account (KSA)
  • Google Service Account (GSA)
  • GKE settings (GKE workload identity)

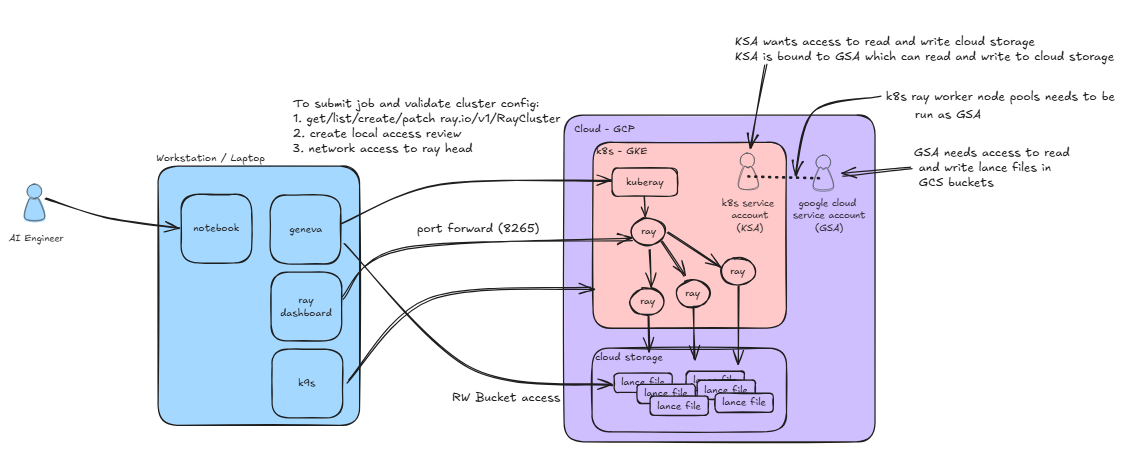

Geneva security requirements

In the following sections we'll use these variables

NAMESPACE=geneva  # replace with your actual namespace if different
KSA_NAME=geneva-ray-runner # replace with an identity name
PROJECT_ID=...  # replace with your google cloud project name
GSA_EMAIL=${KSA_NAME}@${PROJECT_ID}.iam.gserviceaccount.com
LANCEDB_URI=gs://bucket/db  # replace with your own path

Google service account (GSA)

To give your k8s workers the ability to read and write from your LanceDB buckets, your KSA needs to be bound to a Google Cloud service account (GSA) with those grants. With this setup, any pod using the KSA will automatically get a token that lets it impersonate the GSA.

Let's set this up:

Create a google cloud service account

gcloud iam service-accounts create ${KSA_NAME} \
  --project=${PROJECT_ID} \
  --description="Service account for ray workloads in GKE" \
  --display-name="Ray Runner GSA"

You can verify this using:

gcloud iam service-accounts list --filter="displayName:Ray Runner GSA"

Warning

You need roles/iam.serviceAccountAdmin or minimally roles/iam.serviceAccountTokenCreator rights to run these commands.

Next, you'll need to verify that your KSA is bound to your GSA and has has roles/iam.workloadIdentityUser

gcloud iam service-accounts get-iam-policy $GSA_EMAIL \
  --project=$PROJECT_ID \
  --format="json" | jq '.bindings[] | select(.role=="roles/iam.workloadIdentityUser")'

Give your GSA rights to access the LanceDB bucket.

gcloud storage buckets add-iam-policy-binding ${LANCEDB_URI}$ \
  --member="serviceAccount:${KSA_NAME}@${PROJECT_ID}.iam.gserviceaccount.com" \
  --role="roles/storage.objectAdmin"

GKE workload identity

A GKE workload identity is required to enable k8s workloads access Google Cloud services security and without needing to manually manage service account keys. The workload identity is attached to Google Cloud service accounts (GSA) and mapped to a Kubernetes service account (KSA). This feature needs to be enabled on the GKE cluster.

You can confirm that your workers have abilities to read/write to the LancedDB bucket.

kubectl run gcs-test --rm -it --image=google/cloud-sdk:slim \
  --serviceaccount=${KSA_NAME} \
  -n ${NAMESPACE} \
  -- bash

echo "hello" > test.txt
gsutil cp test.txt ${LANCEDB_URI}/demo-check/test-write.txt

Confirm the identity inside the pod

curl -H "Metadata-Flavor: Google" \
  http://metadata.google.internal/computeMetadata/v1/instance/service-accounts/default/email

Geneva on AWS EKS

Geneva can be used to provision Ray clusters running in Amazon Web Services (AWS) Elastic Kubernetes Service (EKS). This guide will walk through all of the concepts required to set up Geneva on EKS.

Alternatively, LanceDB can provide sample Terraform code to automate the bootstrapping process and provision the required cloud infrastructure.

In the following sections we'll use these variables

NAMESPACE=geneva  # replace with your actual namespace if different
CLUSTER=geneva  # replace with your actual namespace if different
KSA_NAME=geneva-ray-runner # replace with an identity name

EKS Node groups

EKS allows you to specify templates for virtual machines in "node groups". These allow you to manage and configure resources such as the number of CPUs, number of GPUs, amount of memory, and if instances are spot or regular virtual machines.

You can define your node groups however you want but Geneva uses three specific kubernetes labels to when deploying Ray pods on EKS: ray-head, ray-worker-cpu, ray-worker-gpu

Head nodes are where the Ray dashboard and scheduler run. They should be non-spot instances and should not have processing workloads scheduled on them. Geneva looks for nodes with the geneva.lancedb.com/ray-head: true k8s label for this role.

CPU Worker nodes are where distributed processing that does not require GPU should be scheduled. Geneva looks for nodes with the geneva.lancedb.com/ray-worker-cpu: true k8s label when these nodes are requested.

GPU Worker node are where distributed processing that require GPU should be scheduled. Geneva looks for nodes with the geneva.lancedb.com/ray-worker-gpu: true k8s label when these nodes are requested.

Install Kuberay operator using Helm

Geneva requires the Kuberay operator to be installed in your EKS cluster.

i.e.

helm repo add kuberay https://ray-project.github.io/kuberay-helm/
helm repo update
helm install kuberay-operator kuberay/kuberay-operator -n $NAMESPACE

Install NVIDIA device plugin

For GPU support, the NVIDIA device plugin must be installed in your EKS cluster

i.e.

curl https://raw.githubusercontent.com/NVIDIA/k8s-device-plugin/v0.17.0/deployments/static/nvidia-device-plugin.yml > nvidia-device-plugin.yml
kubectl apply -f nvidia-device-plugin.yml

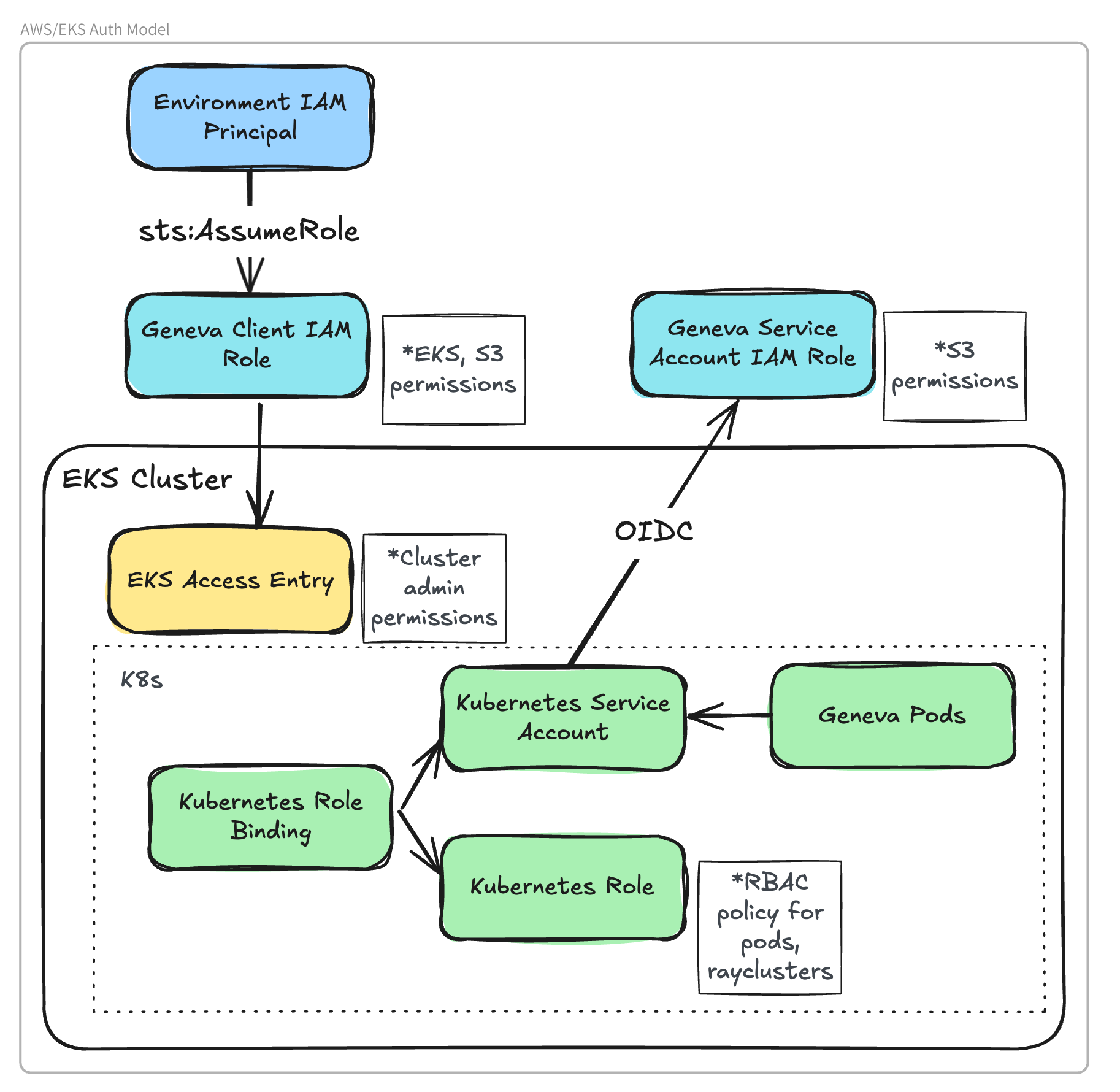

Configure access control


Environment IAM Principal

Geneva must be run in an environment with access to AWS credentials with permissions to sts:AssumeRole on the Geneva Client IAM Role.

For example, this could be a laptop with credentials provided by environment variables, or an EC2 instance with credentials provided via Instance Profile.

Create Geneva Client IAM Role

The Geneva Client IAM Role is assumed by the Geneva client to provision the Kuberay cluster and run remote jobs.

This role requires IAM permissions to access the storage bucket and Kubernetes API.

Create an IAM role with the following policy:

{
    "Version": "2012-10-17",
    "Statement": [
      {
        "Sid": "ClusterAccess",
        "Action": [
            "eks:DescribeCluster",
            "eks:AccessKubernetesApi"
        ],
        "Effect": "Allow",
        "Resource": "<your eks cluster arn>"
      },
      {
        "Sid": "AllowListBucket",
        "Effect": "Allow",
        "Action": [
          "s3:ListBucket"
        ],
        "Resource": "arn:aws:s3:::<your storage bucket>"
      },
      {
        "Sid": "AllowAllS3ObjectActions",
        "Effect": "Allow",
        "Action": [
          "s3:GetObject",
          "s3:PutObject",
          "s3:DeleteObject",
          "s3:HeadObject"
        ],
        "Resource": "arn:aws:s3:::<your storage bucket>/*"
      }
    ]
}

This role should also have a trust policy with sts:AssumeRole permissions for any principal initiating the Geneva client.

When using Geneva, the client role can be specified with the role_name RayCluster parameter.

Create EKS Access Entry

Create an EKS access entry to allow the Geneva Client Role to access the Kubernetes API for the EKS Cluster.

i.e.

aws eks create-access-entry --cluster-name $CLUSTER --principal-arn <your geneva client role ARN> --type STANDARD
aws eks associate-access-policy --cluster-name $CLUSTER --principal-arn <your geneva client role ARN> --access-scope type=cluster --policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy

Create EKS OIDC Provider

Create an OIDC provider for your EKS cluster. This is required to allow Kubernetes Service Accounts (KSA) to assume IAM roles. See AWS documentation.

Create Geneva Service Account IAM Role

An IAM role is required for the Kubernetes Service Account (KSA) that will be used by the Ray head and worker pods to read and write to lance in S3.

This role must have permissions to access the storage bucket and to describe the EKS cluster.

i.e.

{
    "Version": "2012-10-17",
    "Statement": [
      {
        "Sid": "ClusterAccess",
        "Action": [
            "eks:DescribeCluster"
        ],
        "Effect": "Allow",
        "Resource": "<your eks cluster arn>"
      },
      {
        "Sid": "AllowListBucket",
        "Effect": "Allow",
        "Action": [
          "s3:ListBucket"
        ],
        "Resource": "arn:aws:s3:::<your storage bucket>"
      },
      {
        "Sid": "AllowAllS3ObjectActions",
        "Effect": "Allow",
        "Action": [
          "s3:GetObject",
          "s3:PutObject",
          "s3:DeleteObject",
          "s3:HeadObject"
        ],
        "Resource": "arn:aws:s3:::<your storage bucket>/*"
      }
    ]
}

In addition, it must have a trust policy allowing the EKS OIDC provider to assume the role from the Kubernetes Service Account.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "<OIDC Provider ARN>"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "<OIDC Provider>:aud": "sts.amazonaws.com",
                    "<OIDC Provider>:sub": "system:serviceaccount:$NAMESPACE:$KSA_NAME"
                }
            }
        }
    ]
}

Associate the IAM role with the Kubernetes Service Account

Modify the Kubernetes Service Account created in "Basic Kubernetes setup" to associate it with the IAM role created above.

The role ARN is specified using eks.amazonaws.com/role-arn annotation.

i.e.

kubectl annotate serviceaccount "$KSA_NAME" \
  -n "$NAMESPACE" \
  "eks.amazonaws.com/role-arn=$ROLE_ARN" \
  --overwrite

Initialize the Ray Cluster

Initialize the Ray cluster using the node selectors and metadata from above.

Note that the environment must have AWS credentials with permissions to sts:AssumeRole on the Geneva Client IAM Role.

from geneva.runners.ray._mgr import ray_cluster
from geneva.runners.ray.raycluster import (K8sConfigMethod, _HeadGroupSpec, _WorkerGroupSpec)

head_spec = _HeadGroupSpec(
    service_account="geneva-ray-runner",
    num_cpus=1,
    memory=2048,
    node_selector={"geneva.lancedb.com/ray-head": "true"},
)

worker_spec = _WorkerGroupSpec(
    name="worker",
    min_replicas=1,
    service_account="geneva-ray-runner",
    num_cpus=2,
    memory=4096,
    node_selector={"geneva.lancedb.com/ray-worker-cpu": "true"},
)

with ray_cluster(
    name="my-ray-cluster",
    namespace="geneva",
    cluster_name="geneva",
    config_method=K8sConfigMethod.EKS_AUTH,
    region="us-east-1",
    use_portforwarding=True,
    head_group=head_spec,
    worker_groups=[worker_spec],
    role_name="geneva-client-role",
) as cluster:
    table.backfill("embedding")
