Namespace Concepts

Namespace Definition

A Lance namespace is a centralized repository for discovering, organizing, and managing Lance tables. It can either contain a collection of tables, or a collection of Lance namespaces recursively. It is designed to encapsulates concepts including namespace, metastore, database, schema, etc. that frequently appear in other similar data systems to allow easy integration with any system of any type of object hierarchy.

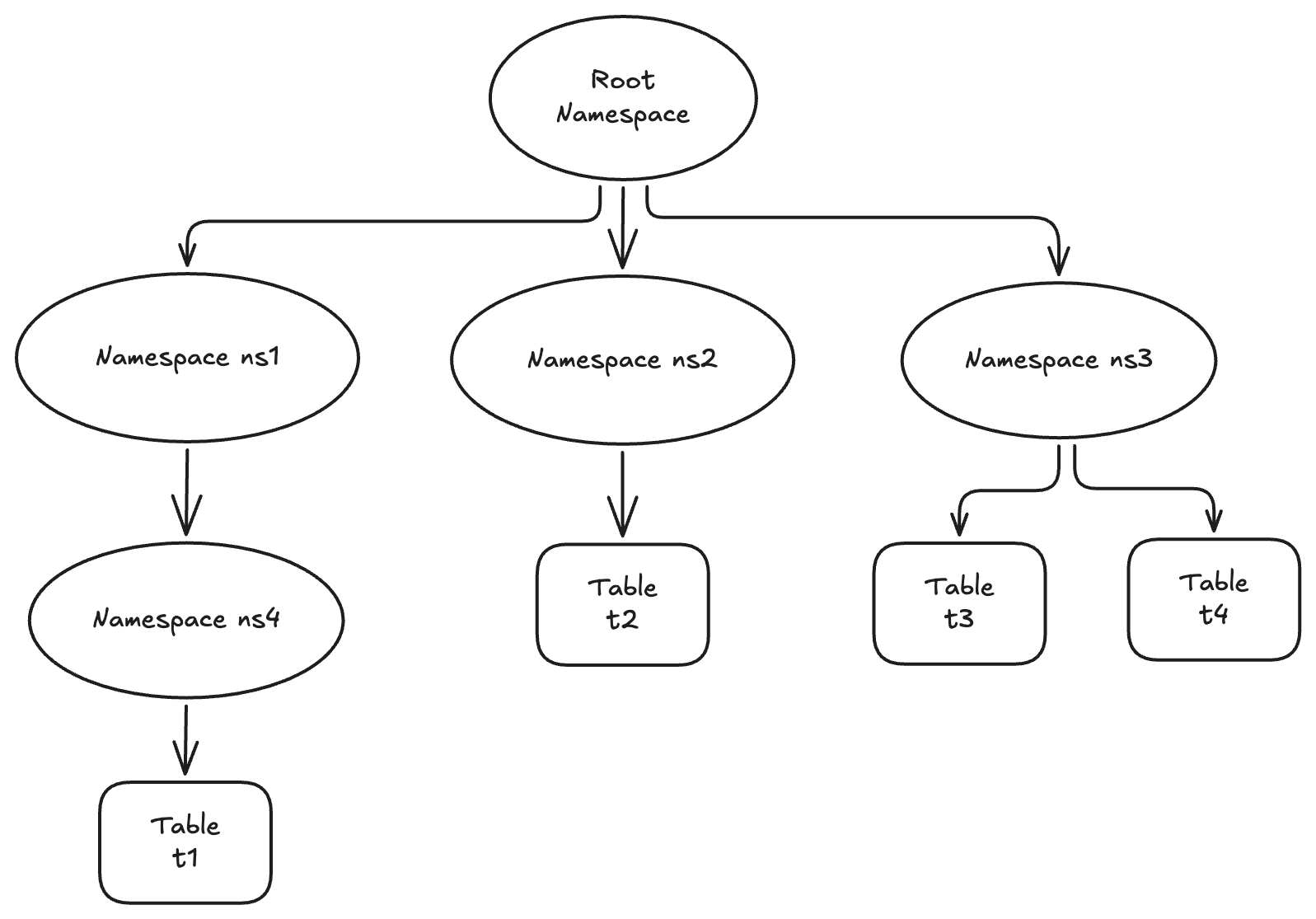

Here is an example layout of a Lance namespace:

Parent & Child

We use the term parent and child to describe relationship between 2 objects. If namespace A directly contains B, then A is the parent namespace of B, i.e. B is a child of A. For examples:

• Namespace ns1 contains a child namespace ns4. i.e. ns1 is the parent namespace of ns4.
• Namespace ns2 contains a child table t2, i.e. t2 belongs to parent namespace ns2.

Root Namespace

A root namespace is a namespace that has no parent. The root namespace is assumed to always exist and is ready to be connected to by a tool to explore objects in the namespace. The lifecycle management (e.g. creation, deletion) of the root namespace is out of scope of this specification.

Object Name

The name of an object is a string that uniquely identifies the object within the parent namespace it belongs to. The name of any object must be unique among all other objects that share the same parent namespace. For examples:

• cat2, cat3 and cat4 are all unique names under the root namespace
• t3 and t4 are both unique names under cat4

Object Identifier

The identifier of an object uniquely identifies the object within the root namespace it belongs to. The identifier of any object must be unique among all other objects that share the same root namespace.

Based on the uniqueness property of an object name within its parent namespace, an object identifier is the list of object names starting from (not including) the root namespace to (including) the object itself. This is also called an list identifier. For examples:

• the list identifier of cat5 is [cat2, cat5]
• the list identifier of t1 is [cat2, cat5, t1]

The dot (.) symbol is typically used as the delimiter to join all the names to form an string identifier, but other symbols could also be used if dot is used in the object name. For examples:

• the string identifier of cat5 is cat2.cat5
• the string identifier of t1 is cat2.cat5.t1
• the string identifier of t3 is cat4$t3 when using delimiter $

Name and Identifier for Root Namespace

The root namespace itself has no name or identifier. When represented in code, its name and string identifier is represented by an empty or null string, and its list identifier is represented by an empty or null list.

The actual name and identifier of the root namespace is typically assigned by users through some configuration when used in a tool. For example, a root namespace can be called cat1 in Ray, but called cat2 in Apache Spark, and they are both configured to connect to the same root namespace.

Namespace Level

If every table has the same number of namespaces all the way to the root namespace, the namespace is called leveled. The example above is not leveled because t1 has 2 namespaces ns1 and ns4 before root, whereas t2 has 1 namespace ns2 before root.

For a leveled namespace, the number of namespaces up to and including the root for any table is referred to as the number of levels. For example, a directory namespace is a 1-level namespace, and a Hive 2.x namespace is a 2-level namespace.
